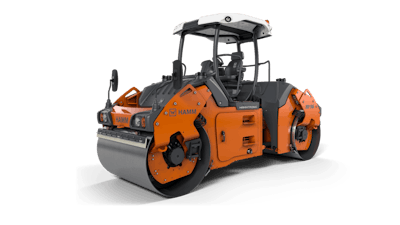

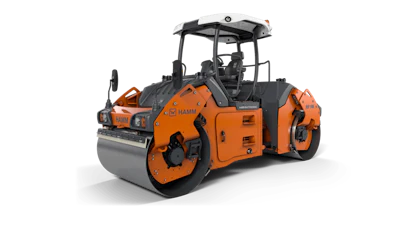

HD+ 90i VV
Tandem roller with two vibrating roller drums
Highlights
Track offset for comfortable starting and driving away and compacting at curbsides Electronic machine management Hammtronic Operating concept Easy Drive 3-point articulation for even weight distribution and excellent directional stability Excellent view of machine and construction site
Technical specifications
Series Name Description Exhaust emissions category Series HD+ HD+ 90i VV Tandem roller with two vibrating roller drums EU Stage V / EPA Tier 4 H273
French classific., data/class Operating weight, max. Operating weight with ROPS Basic weight no cab, without ROPS Operating weight with cab Static linear load, front Axle load, rear Axle load, front 22,3/VT1 26,041 lbs 20,308 lbs 18,478 lbs 20,683 lbs 158.5 lbs/in 10,209 lbs 10,474 lbs
Total length Total width with cab Max. working width Total height with cab Wheelbase Turning radius, inside Height, loading, min. Curb clearance, rear Curb clearance, left 192.9 in 70.9 in 72.8 in 117.3 in 145.7 in 238.2 in 84.6 in 31.5 in 31.5 in
Drum type, front Drum type, rear Track offset, left Drum thickness, rear Drum thickness, front Drum diameter, rear Drum diameter, front Drum width, rear Drum width, front Smooth/non-split Smooth/non-split 6.7 in 0.7 in 0.7 in 47.2 in 47.2 in 66.1 in 66.1 in
Type Number of cylinders Emission standard Exhaust gas after-treatment Power ISO 14396, rpm Power ISO 14396, HP Power ISO 14396, kW Power SAE J1349, rpm Power SAE J1349, HP Power SAE J1349, kW TCD 3.6 L4 4 EU Stage V / EPA Tier 4 DOC-DPF-SCR 2,300 rpm 115.6 HP 85 kW 2,300 rpm 113.9 hp 85 kW
Regulation, infinitely variable Speed, infinitely variable Climbing ability, without vibration Climbing ability, with vibration Hammtronic 0,0 - 6,2 45 % 40
Centrifugal force, rear, II Centrifugal force, rear, I Centrifugal force, front, II Centrifugal force, front, I Amplitude, front, II Amplitude, front, I Vibration frequency, rear, II Vibration frequency, rear, I Vibration frequency, front, II Vibration frequency, front, I Amplitude, rear, II Amplitude, rear, I 13,500 lbs 16,875 lbs 13,500 lbs 16,875 lbs 0.013 in 0.024 in 3,000 VPM 2,520 VPM 3,000 VPM 2,520 VPM 0.013 in 0.024 in
Steering, type Oscillation angle +/- Articulated steering 10 °
Water sprinkler, type Fuel tank, capacity Water tank, capacity Pressure 45.7 gpm 200.8 gpm
Fuel tank, capacity Water tank, capacity AdBlue/DEF tank, content 45.7 gpm 200.8 gpm 5.3 gpm
Acoustic power LW(A), measured Acoustic power LW(A), sticker 105 db(A) 107Equipment 12 V outlet 2 large working and rear view mirrors Foldable scraper Operating concept Easy Drive Pressure water sprinkling with interval switch Optional equipment Heating and air conditioning Tachograph HCQ navigator Dashboard cover Automatic engine-off function
