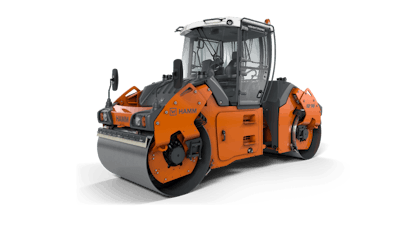

HD+ 90i VV-S
Highlights
Excellent view of the machine and the construction site Electronic machine management Hammtronic Track offset for comfortable start up, moving away and compacting at curb edges 3-point articulation for even weight distribution and excellent on-centre feel Operating concept Easy Drive
Technical specifications
Series Name Description Exhaust emissions category Series HD+ HD+ 90i VV-S Tandem roller with two vibrating roller drums EU Stage V / EPA Tier 4 H273
Technical specifications
Operating weight, max. Operating weight with ROPS French classific., data/class Basic weight no cab, without ROPS Operating weight with cab Static linear load, front Axle load, rear Axle load, front 12,470 kg 9,860 kg 23,0/VT0 9,030 kg 10,030 kg 30.2 kg/cm 4,955 kg 5,075 kg
Technical specifications Total length Total width with cab Max. working width Total height with cab Wheel base Turning radius, inside Height loading, min. Curb clearance, rear Curb clearance, left 4,900 mm 1,800 mm 1,850 mm 2,980 mm 3,700 mm 6,050 mm 2,150 mm 800 mm 800 mm
Technical specifications Drum type, front Drum type, rear Track offset, left Drum thickness, rear Drum thickness, front Drum diameter, rear Drum diameter, front Drum width, rear Drum width, front Smooth/split Smooth/split 170 mm 17 mm 17 mm 1,200 mm 1,200 mm 1,680 mm 1,680 mm
Technical specifications Version Number of cylinders Emission standard Exhaust gas after-treatment Power ISO 14396, rpm Power ISO 14396, HP Power ISO 14396, kW Power SAE J1349, rpm Power SAE J1349, HP Power SAE J1349, kW TCD 3.6 L4 4 EU Stage V / EPA Tier 4 DOC-DPF-SCR 2,300 rpm 115.6 HP 85 kW 2,300 rpm 113.9 hp 85 kW
Technical specifications Regulation, infinitely variable Speed, infinitely variable Climbing ability, without vibration Climbing ability, with vibration Hammtronic 0 - 10,5 52 % 47
Technical specifications Centrifugal force, rear, II Centrifugal force, rear, I Centrifugal force, front, II Centrifugal force, front, I Amplitude, front, II Amplitude, front, I Vibration frequency, rear, II Vibration frequency, rear, I Vibration frequency, front, II Vibration frequency, front, I Amplitude, rear, II Amplitude, rear, I 78 kN 84 kN 78 kN 84 kN 0.4 mm 0.61 mm 50 Hz 42 Hz 50 Hz 42 Hz 0.4 mm 0.61 mm
Technical specifications Steering, type Oscillation angle +/- Articulated steering 10 °
Technical specifications Water sprinkler, type Fuel tank, capacity Water tank, capacity Pressure 173 l 760 l
Technical specifications Fuel tank, capacity Water tank, capacity AdBlue/DEF tank, content 173 l 760 l 20 l
Technical specifications Acoustic power LW(A), measured Acoustic power LW(A), sticker 105 db(A) 107
Equipment
12 V socket 2 large working and rear view mirrors Foldable scraper Operating concept Easy Drive Pressure water sprinkling with interval switch Optional equipment Heating and air conditioning Tachograph HCQ Navigator Dashboard cover Automatic engine-off function
