Over the past decade, the U.S. concrete industry has undergone one of its most significant material transitions since the widespread adoption of supplementary cementitious materials (SCMs). Type IL cement, also known as portland limestone cement (PLC), has rapidly become the primary hydraulic cement used in many U.S. markets. What began as a sustainability initiative has evolved into a fundamental shift in cement manufacturing and concrete production. Today, many ready-mix producers have fully converted to PLC, making it the standard binder encountered on projects.
The question is not whether Type IL cement should be used, but rather how its characteristics influence concrete behavior during placement, finishing, curing and strength development. Although PLC complies with ASTM C595 and is designed to provide performance equivalent to traditional ASTM C150 Type I and Type II cements, equivalent performance does not necessarily mean identical field behavior. Contractors who understand the material science behind PLC are better able to consistently deliver high-quality concrete while avoiding common challenges associated with the transition.

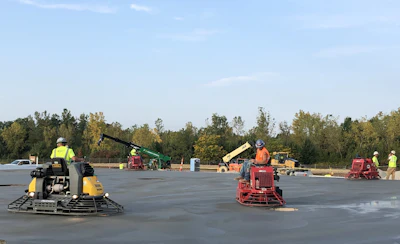

Type IL cement may arrive like traditional mixes, but crews are finding that achieving consistent results requires tighter control of water, placement and communication with producers.The Euclid Chemical Company
Understanding the Chemistry Behind PLC
Type IL cement is produced by intergrinding portland cement clinker with 5 to 15 percent finely ground limestone. While limestone was once considered an inert filler, research has shown that it contributes to hydration and microstructural development within the cement paste.
The finely ground limestone improves particle packing, reducing void space within the cementitious matrix and creating a denser paste structure. It also provides nucleation sites that accelerate the formation of calcium silicate hydrate (C-S-H), the primary hydration product responsible for strength development. In addition, limestone reacts with aluminate phases in cement to form carboaluminate compounds that contribute to paste stability and durability.
These mechanisms allow PLC to achieve performance comparable to conventional portland cement while reducing clinker content. Because clinker production accounts for the majority of cement-related carbon emissions, PLC can reduce embodied carbon by approximately 8 to 10 percent compared to traditional portland cement. While sustainability remains a key driver for adoption, contractors are primarily concerned with how these chemical differences affect concrete performance in the field.
Fresh Concrete Behavior and Workability
One of the first differences contractors may notice with PLC mixtures is a change in fresh concrete rheology. The finer particle size distribution often associated with PLC can influence water demand, workability retention and finishing characteristics.
Many PLC mixtures exhibit greater cohesiveness than conventional portland cement mixtures. This can improve pumpability and reduce segregation, but it may also alter how concrete responds during placement and consolidation. Contractors should recognize that slump alone may not fully characterize workability. Two mixtures with identical slump values can behave differently depending on the cement source and overall mixture design.
The increased surface area associated with finer particles can also affect admixture demand. Water-reducing admixtures often play a more critical role in optimizing PLC mixtures, particularly when low water-cementitious material ratios are required. Rather than relying on jobsite water additions, contractors should work closely with producers to ensure admixture systems are properly balanced for the specific cement source and performance requirements.
Because PLC performance can vary among manufacturers, assumptions based on previous experience with one cement source may not apply universally. Understanding local materials and conducting preconstruction evaluations are becoming increasingly important.

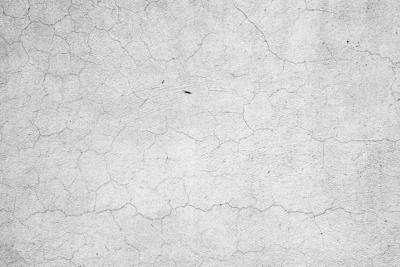

Reduced bleeding in PLC mixes can lead to surface crusting, where the top dries faster than the underlying concrete—creating risk for cracking and delamination.The Euclid Chemical Company
Bleeding Characteristics and Moisture Management
Perhaps the most significant field difference associated with PLC concrete involves bleeding behavior. Many PLC mixtures exhibit reduced bleeding rates and slower upward migration of bleed water compared to conventional portland cement systems. This behavior is largely attributed to finer particle size distribution and improved particle packing.
While reduced bleeding can improve surface quality and reduce settlement-related defects, it also creates challenges that contractors must proactively manage. Bleed water traditionally serves as a temporary moisture reservoir that helps offset evaporation occurring at the concrete surface. When bleeding is reduced, surface moisture can be depleted more rapidly than it is replenished.
Contractors who rely solely on visual indicators developed through years of experience with conventional cement systems may inadvertently misjudge slab readiness when working with PLC mixtures.
Under conditions involving elevated concrete temperatures, low relative humidity, direct sunlight or moderate wind speeds, evaporation can exceed the rate at which moisture reaches the surface. The result is a moisture gradient that can generate tensile stresses exceeding the concrete's early-age tensile capacity, leading to plastic shrinkage cracking.
Rapid surface drying can also contribute to crusting, crazing and finishing difficulties. Contractors who rely solely on visual indicators developed through years of experience with conventional cement systems may inadvertently misjudge slab readiness when working with PLC mixtures.
As a result, environmental monitoring has become increasingly important. Calculating evaporation rates and evaluating weather conditions prior to placement should be standard in quality control.
Finishing Operations Require Greater Precision
Reduced bleeding often creates the appearance that a slab is ready for finishing earlier than it actually is. A relatively dry surface may suggest that machine finishing can begin, even though the underlying concrete has not developed sufficient stiffness to support aggressive finishing operations.
Premature troweling can densify the surface layer before moisture and entrapped air have escaped. As hydration continues, these trapped materials may create weak zones beneath the finished surface, increasing the risk of blistering, delamination, scaling susceptibility and reduced surface durability.
The challenge is balancing surface densification with continued moisture movement.
The challenge is balancing surface densification with continued moisture movement. Early finishing passes should maintain an open surface while allowing hydration and moisture equalization to continue throughout the slab depth. Contractors have reported success by delaying aggressive blade pitch adjustments and maintaining flatter blade angles during initial machine-finishing operations.
Organizations like the American Society of Concrete Contractors have published guidance specifically addressing PLC finishing practices. Contractors who incorporate these recommendations into standard operating procedures generally experience fewer surface-related defects and more consistent results.

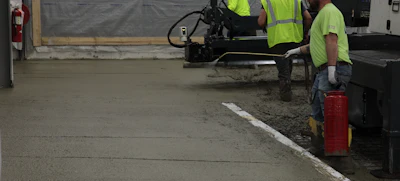

With PLC, evaporation control is critical. Proactive measures like fogging, the use of evaporation retarders, and timely curing protect surface quality and overall performance.The Euclid Chemical Company
Curing is More Important Than Ever
The importance of curing has not changed with PLC adoption, but the consequences of inadequate curing can be more pronounced. Because many PLC mixtures exhibit reduced bleeding, curing operations often need to begin sooner than contractors may be accustomed to. Delays between final finishing and curing application can allow significant moisture loss during a critical stage of hydration.
Hydration requires the continued availability of water. Premature moisture loss can slow hydration, resulting in reduced strength development, increased permeability and reduced durability. Proper curing promotes continued formation of C-S-H, improves surface hardness, reduces drying shrinkage, and enhances resistance to freeze-thaw cycles and chloride intrusion.
As owners increasingly demand longer service life and improved durability performance, curing should receive the same level of attention as mixture design and finishing operations. Membrane-forming curing compounds, wet curing methods and curing blankets should be selected based on project-specific environmental conditions and performance requirements.
Admixture Compatibility and Mixture Optimization
Modern PLC mixtures often rely on carefully engineered admixture systems to balance workability, setting characteristics, strength development and durability requirements. Water reducers, hydration stabilizers, accelerators and viscosity-modifying admixtures can all contribute to mixture performance.
Viewing concrete as an integrated materials system rather than a collection of ingredients allows compatibility issues to be identified before construction begins.
However, it’s important to understand that admixture-cement compatibility can be more sensitive in PLC systems. Variations in limestone content, sulfate balance, clinker chemistry and SCM usage can influence admixture effectiveness. Polycarboxylate-based water reducers, for example, may exhibit different adsorption characteristics depending on the cement source, while set-controlling admixtures may produce varying responses among PLC formulations.
The most successful projects involve collaboration among contractors, ready-mix producers, cement suppliers and admixture manufacturers. Viewing concrete as an integrated materials system rather than a collection of ingredients allows compatibility issues to be identified before construction begins.
Strength Development & Performance Verification
Although PLC is fully capable of achieving specified compressive strengths, contractors should avoid assuming that strength development profiles will mirror those of previous projects. Early-age strength gain can vary depending on cement fineness, limestone content, curing conditions, SCM replacement levels and admixture selection. These variables can influence critical construction activities such as form removal, saw-cut timing, post-tensioning operations and opening slabs to traffic.
Thus, performance verification should be based on project-specific testing rather than historical assumptions. Maturity monitoring, field-cured cylinders and in-place strength evaluation methods offer valuable information that supports informed construction decisions and reduces scheduling risk.
Adapting to a New Generation of Cementitious Materials
Beyond being a lower-carbon alternative to traditional portland cement, Type IL cement serves as the foundation of the next generation of concrete materials that will help the industry meet increasingly aggressive sustainability goals. As contractors continue to encounter mixtures incorporating PLC, SCMs, calcined clays and other emerging technologies in the months and years ahead, a deeper understanding of concrete science will become not just valuable but necessary.
