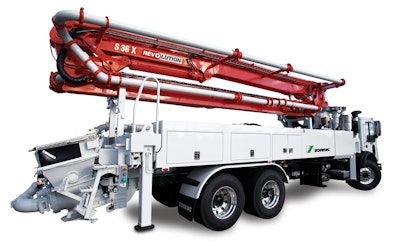

The New Revolution Boom on the S 36 X Truck-mounted Concrete Pump

Schwing introduces boom technology that will take the concrete pumping business to new levels. The patented Revolution boom on the S 36 X truck-mounted concrete pump offers maneuverability and speed, with continuous 360-degree articulation of the tip section and unprecedented 330-degrees of articulation of the third section. Hydraulic motors replace the last two cylinders of the four-section boom to provide the additional coverage.

• The 36 X with Revolution boom provides 115 ft. 6 in. of reach
• Compact X-style outriggers set-up with a 20 ft. 5 in. outrigger spread
• The 730-degree slewing range (365 left and 365 right) aids in fast set-up and versatility to overcome jobsite obstacles
• The standard 2025H-5 pump kit offers 178 cu. yds. per hour output and 23 strokes per min.
• Boom operation is through the Vector Control system that provides wireless proportional joystick control
