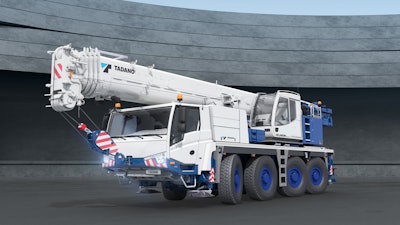

Tadano AC 4.070(L)-1 All-Terrain Crane

The Tadano Group upgraded the ATF 70G-4 with a four-axle all terrain crane, the AC 4.070(L)-1, featuring a lifting capacity of 75 US tons and two boom lengths. The crane was designed with a focus on versatility and operational comfortability. As part of its reorganization efforts, Tadano will be standardizing the names of its mobile crane models throughout the upcoming year. The new AC4.070(L)-1 adheres to the new naming standardization.

The Tadano AC 4.070(L)-1 features:

• AML-F crane control system
• Six-section main boom of 171 ft.
• Crane lift capacity: 12,786 lbs. (at full length)
• Maximum main boom extension: 29.5 ft. to 53.5 ft.
• Maximum tip height: 233.0 ft.
• Maximum radius: 170.6 ft.
• Carrier engine: Mercedes-Benz OM 470 LA, 456 HP / 340 kW, EU Stage V
• Superstructure engine: Mercedes-Benz OM 934 LA, 175 HP / 129 kW, EU Stage V
• Transmission: ZF TraXon 12.1
